Bandsaw COMPACT

The operating station of the COMPACT Bandsaw is stationarily fixed to the ground behind the saw. All of the components of the sawhead and the guideway are identical to those of the PROFI machine. The saw blade pressure guide is also included. An extra lift of 1,100mm enables the machine to cut oversized timber (max. trunk diameter 1.1m). The new COMPACT Series is a robust, topquality, “trimmed-down version of the PROFI machine”.

The COMPACT Series is ideal for companies that work with a log frame or saw gate and are looking for a horizontal bandsaw in order to cut into oversized trunks or to pre-cut or preshape oversized trunks in preparation for a resaw system. The cost/performance ration of the COMPACT Line is also of interest to newcomers.
  • Sawhead
    Precutter
    Longer cutting life. The precutter removes dirt and bark from trunks to allow the saw blade to perform a clean cut. This increases the service life of the saw teeth enormously.
    blockbandsaege-resch-3-compact-vorschneider-ea
    Pressure guides
    Precise guidance. The pressure guides improve the stability and reliability of the sawblade guidance system. As a result, precise cutting is possible even at elevated feed rates. Both guides can be moved to position it as close as possible to the log.
    blockbandsaege-resch-3-compact-druckfuehrung-e
    Sawdust box
    Clean work. Sawdust is collected in a dedicated container, which is emptied automatically when the full level is reached.
    blockbandsaege-resch-3-saegemehlkiste-s-m-e
    Automatic plank remover
    A major work aid. In order to cut high-quality sawn products, it is important that the quality of the wood is visible after each cut, which means that each individual plank must be removed immediately after being sawn.
    The automatic plank remover makes this possible: Depending on the specific cutting operation, each individual plank, squared timber or flitch is removed automatically during the return travel phase and placed alongside the machine.
    blockbandsaege-resch-3-brettabwerfer-s-m-e-a
    Control panel
    Simple and clearly structured. Various programmes on the display enable the operator to quickly enter the respective cutting thicknesses.
    blockbandsaege-resch-3-compact-bedienpult
    Height positioning
    Two hydraulic cylinders move the sawhead up and down. The height positioning is performed very quickly and with extreme precision.
    Feed
    The sawhead is directly driven on both sides via two geared motors. The optimum rate of feed is infinitely adjustable from 0-45m/min.
  • Guideway
    Log loader
    A strong helper. The hydraulic log loader lifts each log onto the guideway. After this, it can be processed into timber.
    blockbandsaege-resch-3-stammlader-s-m-e
    Turning chains
    Rotation made simple. Logs of various sizes and shapes, as well as cants and planks, can be easily rotated into the desired position with the turning chains. The turning chains also eject the sawn timber.
    blockbandsaege-resch-3-wendeketten-s-m-e
    Longitudinal rollers
    Properly positioned. Longitudinal feed rollers transport the log back and forth for optimal utilisation of the clamping tongs. The log is thus securely clamped.
    blockbandsaege-resch-3-laengsroller1-s-m-e
    Clamping tongs
    Well secured. Clamping tongs that can be individually adjusted in height are used to align and secure the log to ensure that it is positioned horizontally.

    Minimum height: An additional function positions the clamping tongs at the minimum height. Without cutting into the clamping tongs, the last cut can be made at 15mm.
    blockbandsaege-resch-3-einspannzange-s-m-e
    Squaring
    Exactly 90 degrees. The material to be cut is aligned to the angle fence for sawing square timber, slats or planks.
    blockbandsaege-resch-3-winkel-s-m-e-a
    Outfeed rollers

    When sorting the sawn timber, it is important that the side cuts are separated from the finished cuts. While the planks are laid on their sides with the aid of the turning chains, the outfeed rollers transport the finished cuts longitudinally toward the front.

    blockbandsaege-resch-3-auszugsrollen-s-m-e
    Log infeed
    Logs ready at hand. The hydraulic log infeed conveyor transports the wood to the log loader. Several logs can be loaded on the conveyor at the same time.
    bandsaw-resch-3-log-infeed-s-m-e
    Plank outfeed
    The final step. The plank outfeed simplifies transporting sawn timber to the edging saw. It can be controlled from the cab or the edging saw.
    blockbandsaege-resch-3-brettauszug-0396
Technical data

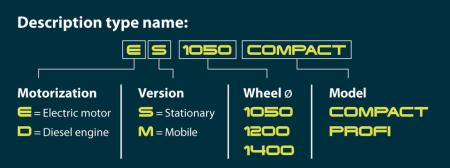

typenbezeichnung-en-resch-3

  1050 1200 1400
ØS  Max. log diameter
1,100
1,500
1,800
mm
F Max.opening sawblade guide 980 1,180 1,390 mm
H
Max.stroke 900 1,000 1,200
mm
E Space above the sawblade 460 530 620 mm
B Guideway width 1,320 1,500 1,700 mm
W Max.opening clamping tongs 660 810 970 mm
C Last cut residual measure 24 24 30 mm
ØR Wheel diameter 1,050 1,200 1,400 mm
  Sawblade length 6,800 7,800
9,500
mm
  Sawblade width 120 150 206 mm
  Sawblade thickness 1.2 1.3 1.47 mm
  Feed Avance 0-50 0-45 0-40 m/min
  Power Sawblade  Electric motor
                             Diesel motor
37-45
55
45-75
90
75-132
/
kW
kW
  Cutting length
depending on customers requirements
GB Total width 3,000 3,400 3,900 mm
GH Total height 3,200 3,500 4,200 mm
  Total weight depending on cutting length
min. 6,000
min. 8,000
min 12,000
kg
