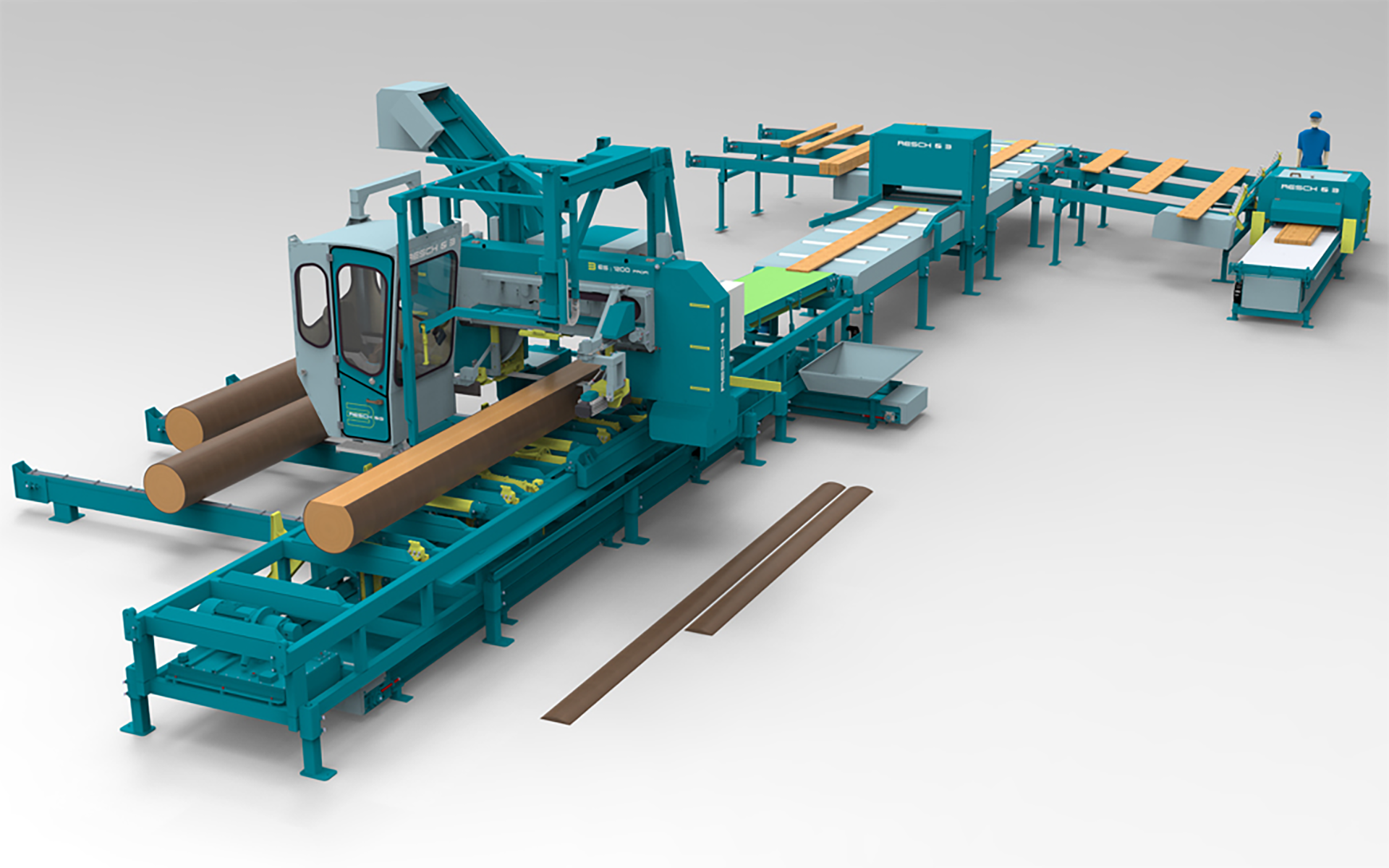

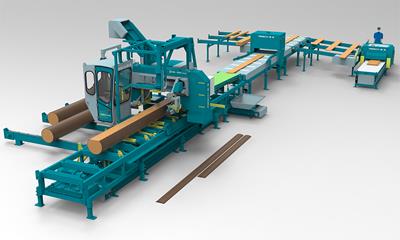

Stationary bandsaw PROFI

Guaranteed stability. The stationary PROFI models leave nothing to be desired. The entire system can be controlled precisely from the comfortable operator cab using two joysticks.
Costly concrete foundations are not necessary here. Stationary saws are usually fitted with an electric motor. However, a diesel engine is used if the mains electrical cannot provide sufficient power. The machine can also be automated using various types of feed chains and roller conveyers.
  • Sawhead
    Cab
    Working safely and comfortably. The travelling cab lets the operator work in a pleasant, low-noise, dust-free environment. The entire system can be operated from the cab using two proportional-control joysticks and a display screen. A direct view of the sawn timber also ensures constant quality control. The cutting height setting can be adjusted easily for the desired sort of sawn timber by using the display screen with several predefined cutting programs. This facilitates optimum log utilisation.
    Resch & 3 also offers a variety of accessory options for the cab: cab heating, xenon external lighting, seat heating, and a radio.
    blockbandsaege-resch-3-kabine-s-m
    Dual precutters
    Longer cutting life. Precutters at both ends of the log trim dirty sections of the raw log to provide clean entrance and exit faces for the saw blade. This dramatically increases the maintenance interval for the saw teeth. The two precutters can be controlled individually.
    blockbandsaege-resch-3-vorschneider-s-m
    Crosscutter
    Everything in a single step. During cutting, each plank can be trimmed automatically to the desired length. Finished lengths of longer timber can thus be taken directly from the mill.
    The hydraulically actuated crosscut saw can optionally be rotated by 90 degrees so it can be used as a ripping saw. Particularly with hardwood, this can be used to part the heartwood or edge one side. The maximum cutting depth of the crosscut saw is 80 mm.
    blockbandsaege-resch-3-querschneider-s-m
    Pressure guides
    Precise guidance. Hydraulic pressure guides give the saw blade extra support and reliable guidance. They are retracted during reverse travel to avoid heating the saw blade. As a result, precise cutting is possible even at elevated feed rates. Each guide can be positioned individually to be as close as possible to the log.
    blockbandsaege-resch-3-druckfuehrung-s-m
    Automatic log measurement
    Intelligent and practical. The log is measured automatically during the first cut. The data is shown in cubic metres on the screen and stored in the system. Various information, such as wood sort, percentage bark content, customer data and so on, can be entered and selected. The results of each day’s work are summarised in a convenient form and can be printed using a PC.
    Sawdust box
    Clean work. Sawdust is collected in a dedicated container, which is emptied automatically when the full level is reached.
    blockbandsaege-resch-3-saegemehlkiste-s-m-e
    Automatic plank remover
    A major work aid. In order to cut high-quality sawn products, it is important that the quality of the wood is visible after each cut, which means that each individual plank must be removed immediately after being sawn.
    The automatic plank remover makes this possible: Depending on the specific cutting operation, each individual plank, squared timber or flitch is removed automatically during the return travel phase and placed alongside the machine.
    blockbandsaege-resch-3-brettabwerfer-s-m-e-a
    Sawblade replacement
    Rapid refitting. For saw blade replacement, the pressure on the blade tensioning system can be released from the cab, and the protective housing is opened by hydraulic actuators.
    The saw blade can be easily removed and replaced. The machine is ready for use again in almost no time.
    blockbandsaege-resch-3-dm1050profi-201204-saegeblattwechsel
  • Guideway
    Log loader
    A strong helper. The hydraulic log loader lifts each log onto the guideway. After this, it can be processed into timber.
    blockbandsaege-resch-3-stammlader-s-m-e
    Turning chains
    Rotation made simple. Logs of various sizes and shapes, as well as cants and planks, can be easily rotated into the desired position with the turning chains. The turning chains also eject the sawn timber.
    blockbandsaege-resch-3-wendeketten-s-m-e
    Longitudinal rollers
    Properly positioned. Longitudinal feed rollers transport the log back and forth for optimal utilisation of the clamping tongs. The log is thus securely clamped.
    blockbandsaege-resch-3-laengsroller1-s-m-e
    Clamping tongs
    Well secured. Clamping tongs that can be individually adjusted in height are used to align and secure the log to ensure that it is positioned horizontally.

    Minimum height: An additional function positions the clamping tongs at the minimum height. Without cutting into the clamping tongs, the last cut can be made at 15mm.
    blockbandsaege-resch-3-einspannzange-s-m-e
    Squaring
    Exactly 90 degrees. The material to be cut is aligned to the angle fence for sawing square timber, slats or planks. A supplementary fine adjustment is provided for tilting the cant. The angle can be corrected as necessary using this adjustment.
    blockbandsaege-resch-3-winkel-s-m-e-a
    Outfeed rollers

    When sorting the sawn timber, it is important that the side cuts are separated from the finished cuts. While the planks are laid on their sides with the aid of the turning chains, the outfeed rollers transport the finished cuts longitudinally toward the front.

    blockbandsaege-resch-3-auszugsrollen-s-m-e
    Log infeed
    Logs ready at hand. The hydraulic log infeed conveyor transports the wood to the log loader. Several logs can be loaded on the conveyor at the same time.
    bandsaw-resch-3-log-infeed-s-m-e
    Plank outfeed
    The final step. The plank outfeed simplifies transporting sawn timber to the edging saw. It can be controlled from the cab or the edging saw.
    blockbandsaege-resch-3-brettauszug-0396
Technical data
typenbezeichnung-en-resch-3

 Type 1050Type 1200
Max. log clearance
1,100 mm
1,500 mm
Wheel diameter
1,050 mm
1,200 mm
COffcut thickness
25 mm
25 mm
Max. stroke
900 mm
900 mm
EMax. cutting depth
460 mm
530 mm
BGuideway width
1,300 mm
1,500 mm
HG Overall height
3,200 mm
3,400 mm
BGOverall width
4,100 mm
4,300 mm
BSOverall saw width
3,300 mm
3,700 mm
 Sawblade length
6,800 mm
7,800 mm

Sawblade width
120 mm
140 mm

Sawblade thickness
1.2 mm
1.2 mm

Cutting length (customer-specified)
13 m standard
13 m standard

Continuously adjustable hydraulic feed
0-40 m/min
0-40 m/min

Main drive:
electric
diesel

37 KW
61 KW

45 KW
81 KW
